Brief

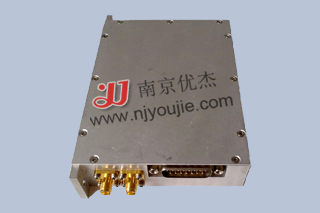

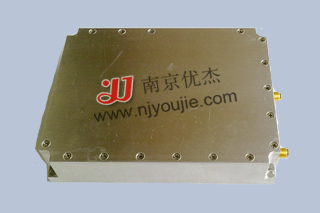

YJDDS - 002 type DDS frequency synthesizer, and can generate radar analog baseband signal Bandwidth is 1.6 G, can produce the signal type has a single carrier frequency signal, linear frequency modulation signal, phase coding, nonlinear frequency modulation signal, etc.
No. |
Technical parameters |
Technical index |
1 |
Working frequency (MHz) |
DC~1600 |
2 |
Output level (dBm) |
≥0 |
3 |
reference Input |
10M or 1G (choose one between them) |
4 |
stray (dBc) |
≤-45 |
5 |
Functions |
frequency modulation, amplitude modulation, phase modulation, etc |
6 |
Working voltage (V) |
+12 |
7 |
interface |
SMA-K |
8 |
Communication port |
RS232/RS485 |
9 |
Working temperature (℃) |
-25~+50℃ |
10 |
Overall dimensions (L*W*H) |
≤121*92*25 (Regardless of the plugin) |
Application fields
■Electronic countermeasures
■Radar simulator
