Brief

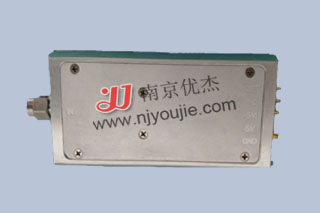

Broadband YJDET - 001 type quick detector built-in demodulation logarithmic amplifier, can accurate impulse moisturiser rf signal is converted to the corresponding decibel scale Output. The Detection component can be applied to impulse moisturiser or Continuous wave rf signal, the Detection component of the response time is only 50 ns, the component has a small volume, convenient use, etc.
Technical index
| No. |
Technical parameters |
Technical index |
| 1 |
Working frequency (GHz) |
0.1～4 |
| 2 |
Detection level range (dBm) |
-35～-5 |
| 3 |
Detection error (dB) |
≤±1 |
| 4 |
Logarithmic slope (mv/dB) |
15～25 |
| 5 |
Response time (ns) |
≤50 |
| 6 |
Output Voltage range (V) |
0.5 ～ 2.0 |
| 7 |
Max Input power(dBm) |
≤25 |
| 8 |
Signal type discriminant |
When the Input signal for Continuous wave, testing the Output high level for the TTL level. Input signals for impulse moisturiser is, detecting the Output level for low TTL level |
| 9 |
Radio frequency Input interface |
SMA-50J (Can be customized) |
| 10 |
Output interface |
insulator (Φ0.7mm) |
| 11 |
Power interface |
insulator (Φ0.7mm) |
| 12 |
Power supply requirements |
+5V±5% ≤500mA -5V±5% ≤100mA |
| 13 |
Working temperature (℃) |
-25～+50℃ |
| 14 |
Overall dimensions (L*W*H) |
≤76*38*25 (Regardless of the plugin) |
Application fields
■The signal detection
■Electronic countermeasures
■Radar simulator
