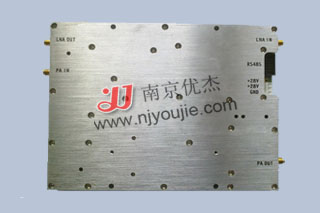

Receiving component

No.	Technical parameters	Technical index
1	Input frequency	UHF (225～400MHz) L Wave band (970～1750MHz) S Wave band (3.4～4.2GHz) C Wave band (7.7～8.3GHz) X Wave band 1 (8.9～9.6GHz) X Wave band 2 (10～11GHz)
2	Output frequency(MHz)	70/140
3	frequency Stepping (MHz)	1
4	Intermediate frequency Bandwidth (MHz)	10
5	Frequency conversion Gain (dB)	≥30
6	Gain adjustment range (dB)	30
7	Gain adjustment's step length (dB)	1
8	Mirror image suppression (dB)	≥20
9	Supply voltage (V)	DC＋12
10	Standing wave ratio	≤1.3:1
11	Working temperature	-25℃～55℃
