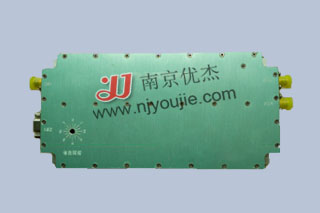

Impulse power amplifier

No.	Technical parameters	Technical index
1	Working frequency (GHz)	9.0 ～10.0
2	Input level (dBm)	-4 ～ 0
3	Output impulse power (W)	≥5
4	impulse width (us)	0.1～120
5	impulse frequency (KHz)	0.1～100
6	Duty ratio (%)	≤10
7	impulse porches (ns)	≤50
8	Passband fluctuation (dB)	≤1.0
9	Gain adjustable range (dB)	≥5
10	clutter Output (dBc)	≤-60
11	Coupling factor of coupling port (dB)	≥25
12	Input, Output voltage Standing wave ratio	≤1.41
13	Supply voltage (V)	+12±1
14	Radio frequency interface's type	SMA-50K
15	Monitoring interface	J30J-9TJ
16	Overall dimensions (mm)	≤1508022(LWH)Regardless of the plugin
