Brief

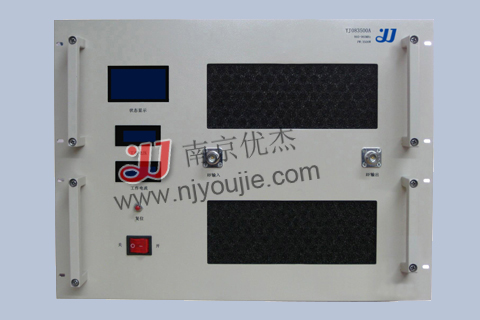

YJPPAWXXXXX type High Power broadband impulse moisturiser Power amplifier is a High gain, High Power amplifier, can be in High Bandwidth limits the Output Power of impulse moisturiser wave Power, the Power amplifier can "learn" internal source (configuration), without external input signal source. Has the power to set, gain adjustment, timing, test, the function such as power saving mode, at the same time with over voltage, over current, over temperature, input, Standing before the wave, such as a power protection function.
Technical index
| Model |
Frequency range
(GHz) |
Power gain
Min(dB) |
Output power
Min(dBm) |
Gain flatness
Max(±dB) |
Standing wave |
Overall dimensions
(mm) |
| YJPPAW10201000 |
1.0～2.0 |
60 |
60 |
2.0 |
2.5 |
600*440*450 |
| YJPPAW10202000 |
1.0～2.0 |
63 |
63 |
2.0 |
2.5 |
600*440*450 |
| YJPPAW20401000 |
2.0～4.0 |
60 |
60 |
2.0 |
2.5 |
600*440*450 |
| YJPPAW20402000 |
2.0～4.0 |
63 |
63 |
2.0 |
2.5 |
600*440*450 |
| YJPPAW40801000 |
4.0～8.0 |
60 |
60 |
2.0 |
2.5 |
600*440*450 |
| YJPPAW40802000 |
4.0～8.0 |
63 |
63 |
2.0 |
2.5 |
600*440*450 |
| YJPPAW801801000 |
8.0～18.0 |
60 |
60 |
2.0 |
2.5 |
600*440*450 |
| YJPPAW801802000 |
8.0～18.0 |
63 |
63 |
2.0 |
2.5 |
600*440*450 |
Application fields
■Electromagnetic compatibility
■ The power tolerance test
■Wireless communication transmission
■ High Power Jamming system
■Passive intermodulation test system
■Passive components multicarrier power impact test
