Brief

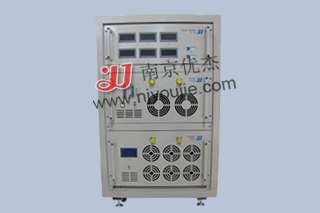

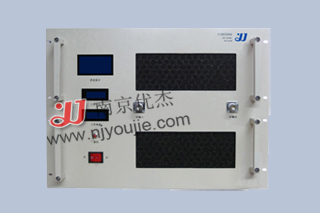

YJPAXXXXX type microwave Power amplifier is a high gain, high Power amplifier, is able to Output within the Bandwidth of 1000 w Continuous wave Power, the Power amplifier can "learn" internal source (configuration), without external input signal source. Has the power to set, gain adjustment, timing, test, the function such as power saving mode, at the same time with over voltage, over current, over temperature, input, Standing before the wave, such as a power protection function.
Technical index
| Model |
Frequency range
(GHz) |
Power gain
Min(dB) |
Output power
Min(dBm) |
Gain flatness
Max(±dB) |
Standing wave |
Overall dimensions
(mm) |
| YJPA0051000 |
0.030～0.088 |
60 |
60 |
0.50 |
1.5 |
600*440*360 |
| YJPA041000 |
0.40～0.47 |
60 |
60 |
0.50 |
1.5 |
600*440*360 |
| YJPA051000 |
0.44～0.52 |
60 |
60 |
0.50 |
1.5 |
600*440*360 |
| YJPA081000 |
0.869～0.894 |
60 |
60 |
0.50 |
1.5 |
600*440*450 |
| YJPA091000 |
0.925～0.96 |
60 |
60 |
0.50 |
1.5 |
600*440*450 |
| YJPA181000 |
1.8～1.88 |
60 |
60 |
0.50 |
1.5 |
600*440*720 |
| YJPA191000 |
1.92～1.99 |
60 |
60 |
0.50 |
1.5 |
600*440*720 |
| YJPA211000 |
2.11～2.17 |
60 |
60 |
0.50 |
1.5 |
600*440*720 |
| YJPA231000 |
2.3～2.4 |
60 |
60 |
0.50 |
1.5 |
600*440*720 |
| YJPA261000 |
2.5～2.7 |
60 |
60 |
0.50 |
1.5 |
600*440*720 |
Application fields
■Electromagnetic compatibility
■ The power tolerance test
■Antenna test system
■Wireless communication transmission
■Electronic countermeasures system
■Radar simulation system
