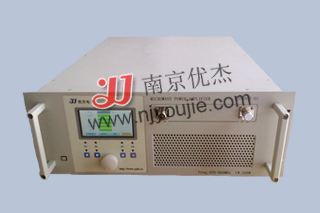

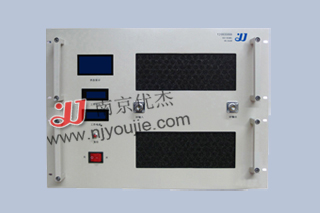

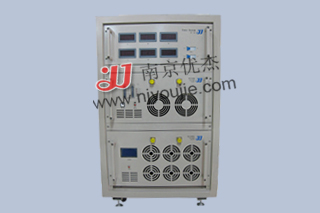

Brief
YJPAWXXXXX type High Power broadband solid-state Power amplifier is a High gain, High Power amplifier, can be in High bandwidth limits the Output Power of Continuous wave Power, the Power amplifier can "learn" internal source (configuration), without external input signal source. Has the power set, gain adjustment, timing test, the function such as power saving mode, have over voltage, over current, over temperature, at the same time input, Standing before the wave and overpower protection function. Can completely replace the AR, OPHIR made, BONN, Germany, Britain milmega, etc
The products of the company.
Technical index
| Model |
Frequency range
(GHz) |
Power gain
Min(dB) |
Output power
Min(dBm) |
Gain flatness
Max(±dB) |
Standing wave |
Overall dimensions
(mm) |
| YJPAW008031000 |
0.08～0.3 |
60 |
60 |
2.5 |
2.0 |
600*600*720 |
| YJPAW008032000 |
0.08～0.3 |
63 |
63 |
2.5 |
2.0 |
600*600*720 |
| YJPAW0310700 |
0.3～1.0 |
58 |
58 |
2.0 |
2.0 |
600*600*720 |
| YJPAW03101000 |
0.3～1.0 |
60 |
60 |
2.0 |
2.0 |
600*600*720 |
| YJPAW00305100 |
0.03～0.512 |
50 |
50 |
2.0 |
2.0 |
600*440*177 |
| YJPAW00305200 |
0.03～0.512 |
53 |
53 |
2.0 |
2.0 |
600*440*270 |
| YJPAW000110100 |
0.001～1.0 |
50 |
50 |
3.0 |
2.0 |
600*440*225 |
| YJPAW00810100 |
0.08～1.0 |
50 |
50 |
3.0 |
2.0 |
600*440*225 |
| YJPAW00810200 |
0.08～1.0 |
53 |
53 |
3.0 |
2.0 |
600*440*270 |
| YJPAW0510100 |
0.5～1.0 |
50 |
50 |
1.0 |
1.5 |
600*440*177 |
| YJPAW0510200 |
0.5～1.0 |
53 |
53 |
1.0 |
1.5 |
600*440*177 |
| YJPAW0510500 |
0.5～1.0 |
57 |
57 |
1.0 |
1.5 |
600*440*450 |
| YJPAW05101000 |
0.5～1.0 |
60 |
60 |
1.5 |
1.5 |
600*600*720 |
| YJPAW0710100 |
0.7～1.0 |
50 |
50 |
1.0 |
1.5 |
600*440*177 |
| YJPAW0710200 |
0.7～1.0 |
53 |
53 |
1.0 |
1.5 |
600*440*225 |
| YJPAW0710500 |
0.7～1.0 |
57 |
57 |
1.0 |
1.5 |
600*440*450 |
| YJPAW1822100 |
1.8～2.2 |
50 |
50 |
1.0 |
1.5 |
600*440*177 |
| YJPAW1822200 |
1.8～2.2 |
53 |
53 |
1.0 |
2.0 |
600*440*225 |
| YJPAW1822500 |
1.8～2.2 |
57 |
57 |
1.0 |
1.5 |
600*440*450 |
| YJPAW2327100 |
2.3～2.7 |
50 |
50 |
1.5 |
1.5 |
600*440*177 |
| YJPAW2327200 |
2.3～2.7 |
53 |
53 |
1.5 |
1.5 |
600*440*225 |
| YJPAW2327500 |
2.3～2.7 |
57 |
57 |
1.5 |
1.5 |
600*440*450 |
| YJPAW0822100 |
0.8～2.2 |
50 |
50 |
4.0 |
2.0 |
600*440*177 |
| YJPAW0822200 |
0.8～2.2 |
53 |
53 |
4.0 |
2.0 |
600*440*270 |
| YJPAW0822500 |
0.8～2.2 |
57 |
57 |
4.0 |
2.0 |
600*600*720 |
| YJPAW0727100 |
0.7～2.7 |
50 |
50 |
4.0 |
2.0 |
600*440*270 |
| YJPAW0727200 |
0.7～2.7 |
53 |
53 |
4.0 |
2.0 |
600*440*450 |
| YJPAW1040100 |
1.0～4.0 |
50 |
50 |
4.0 |
2.0 |
600*440*450 |
| YJPAW2560100 |
2.5～6.0 |
50 |
50 |
4.0 |
2.0 |
600*440*270 |
| YJPAW2560200 |
2.5～6.0 |
53 |
53 |
4.0 |
2.0 |
600*440*450 |
| YJPAW2060100 |
2.0～6.0 |
50 |
50 |
4.0 |
2.0 |
600*440*270 |
Application fields
■Electromagnetic compatibility
■医疗设备
■ The power tolerance test
■Wireless communication transmission
■Radar simulation system
■ High Power Jamming system
■Passive intermodulation test system
■Passive components multicarrier power impact test
